Tutorials for the Processing Framework
Todo:

Most of the code on this page hasn't yet been tested directly; we need to make an examples folder and put it there.

There should also be an (advanced) tutorial on creating a custom data type (and visualizing it).

This page offers several tutorials for using cedar's processing framework. A detailed description of the framework and its concepts can be found at An introduction to cedar's processing framework. In the following tutorials, we assume that you are familiar with these concepts. You can, of course, always look them up again during the tutorials.

This page contains the following sections:

  1. Beginner's Tutorial: One Small Step
  2. Beginner's Tutorial: ElementDeclarations
  3. Beginner's Tutorial: Architecture Files
  4. Beginner's Tutorial: Plug In and Play
  5. Beginner's Tutorial: Using cedar's GUI
  6. Beginner's Tutorial: Dynamics
  7. Intermediate Tutorial: Data Validation
  8. Intermediate Tutorial: Data Validation II (The Automationing)
  9. Intermediate Tutorial: Input Collections
  10. Advanced Tutorial: Writing your own Parameter Type
  11. Advanced Tutorial: Locking your data manually
  12. Advanced Tutorial: Connectable Icon Views
  13. Summary

Tutorials are ordered into separate categories: beginner's tutorials are recommended for people who use the processing framework for the first time. They introduce all the features necessary to work with the processing framework. Intermediate tutorials introduce features that are optional but provide a more effective way of using the framework, such as input validation and others. Advanced tutorials cover features that are likely to only be needed in very few situations and require more advanced programming. Thus, the level of a tutorial doesn't reflect its difficulty, but rather it is a hint at what level of knowledge about the framework is expected from the reader.

Beginner's Tutorial: One Small Step

In this section, we will give a brief introduction on how to create a new processing step that adheres to the principles of the processing framework.

Setting up and building your project

For this tutorial, we recommend using cedar's project scripts for compiling your code. For the first tutorial, please add the necessary lines to compile an executable as described.

Planning

The first thing to do when developing a new processing step (cedar::proc::Step) is to think about what the new step is supposed to do. For now, we pick a fairly simple example: we will create a processing step that receives two matrices and adds them together.

A New Class

First, let's decide to call our class SimpleSummation. In order for it to work within the framework, it has to inherit cedar::proc::Step, so the class header looks something like this

// ...
#include <cedar/processing/Step.h> // if we are going to inherit from cedar::proc::Step, we have to include the header
#include <cedar/auxiliaries/namespace.h> // forward declaration of all classes in cedar::aux
// ...
{
// we assume that you declare all members and functions used throughout the tutorial here
};
// ...

Let's begin by implementing the constructor. From our planning stage, we already know what the inputs and outputs of the step are going to be: we need two inputs (the matrices we plan to add up) and one output (the sum). In terms of the processing framework, this is expressed in the constructor:

// CEDAR INCLUDES
#include "SimpleSummation.h"
#include <cedar/processing/ExternalData.h> // getInputSlot() returns ExternalData
#include <cedar/auxiliaries/MatData.h> // this is the class MatData, used internally in this step
: // <- the colon starts the member initialization list
mOutput(new cedar::aux::MatData(cv::Mat::zeros(1, 1, CV_32F)))
{
/* Declare both inputs; the "true" means that the inputs are mandatory, i.e.,
the step will not run unless both of the inputs are connected to data.
*/
this->declareInput("operand1", true);
this->declareInput("operand2", true);
// Declare the output and set it to the output matrix defined above.
this->declareOutput("sum", mOutput);
}

Don't forget to declare a member variable mOutput of type cedar::aux::MatDataPtr. That's all we need to do in the constructor for now. In order to be able to use the step, we also have to tell it what to compute; for this, we implement the compute function:

// The arguments are unused here
void SimpleSummation::compute(const cedar::proc::Arguments&)
{
// Using data like this is more convenient.
cv::Mat& sum = mOutput->getData();
// Get a pointer to the first input.
cedar::aux::ConstDataPtr op1 = this->getInputSlot("operand1")->getData();
/* Retreive its stored data and add it to the sum.
Note, that we assume that op1 can be cast to MatData!
The call to the clone function is necessary to avoid writing into the input matrix.
*/
sum = op1->getData<cv::Mat>().clone();
// Same as above for the second input.
cedar::aux::ConstDataPtr op2 = this->getInputSlot("operand2")->getData();
sum += op2->getData<cv::Mat>();
// In a console application, this lets us see that the computation is actually happening.
std::cout << "A sum was computed!" << std::endl;
}

Note, that the compute function does not check that operand1 and operand2 are valid, non-null pointers. This is done automatically by the framework, because we specified the inputs to be mandatory in the constructor. Something that we do assume here is that the data connected to the input slots can be cast to cedar::aux::MatData. This assumption can be checked automatically by the framework, as is described in Intermediate Tutorial: Data Validation.

Creating an Architecture

Now that we have our simple summation step, we want to actually let it do something. For this purpose, we need two sources for inputs that we can sum together. Luckily, cedar comes with a few predefined input sources, and for the tutorial we choose a cedar::proc::sources::GaussInput. Generally, inputs to steps are of course not restricted to the Gauss inputs, but can be the output of any other processing step. This also means that if cedar doesn't provide the kind of input you need, you can just write one yourself.

We now write a main method that connects up our architecture:

#include <cedar/processing/Group.h>
#include <cedar/processing/sources/GaussInput.h>
#include "SimpleSummation.h" // header for the class we have written above
int main(int, char**) // we don't use the arguments here
{

The first thing we need in order to connect some steps is a group:

cedar::proc::GroupPtr group(new cedar::proc::Group());

We can now start adding steps to this group:

boost::shared_ptr<SimpleSummation> sum(new SimpleSummation());
// This adds the sum step to the group under the name "sum".
group->add(sum, "sum");
// Gauss inputs
cedar::proc::sources::GaussInputPtr gauss1(new cedar::proc::sources::GaussInput());
group->add(gauss1, "gauss1");
cedar::proc::sources::GaussInputPtr gauss2(new cedar::proc::sources::GaussInput());
group->add(gauss2, "gauss2");

Note that the names we gave the steps are unique identifiers in the group. If you later chose to save the group to a file, you can use these names to retrieve the pointers to the steps from the group with the cedar::proc::Group::getElement function.

Now it is time to connect things up:

// connect the first gauss to the sum
group->connectSlots("gauss1.Gauss input", "sum.operand1");
// connect the second gauss to the sum
group->connectSlots("gauss2.Gauss input", "sum.operand2");
return 0;
}

Here, two strings specify the slots that we want to connect. Each string is always in the form step name dot slot name, where slot name must be either an input or an output slot of this step. And that's it, if you compile and run this program your step should now be computed.

By the way, if you dislike writing this main method, you can use plugins and architecture files instead (see the next two sections, Beginner's Tutorial: ElementDeclarations and Beginner's Tutorial: Architecture Files) or just use the cedar to do it all in a user interface (see Beginner's Tutorial: Using cedar's GUI).

Beginner's Tutorial: ElementDeclarations

In the previous tutorials we have demonstrated how to write a simple processing step. So far, it may not have been clear what the actual advantage of writing all the code described above for a simple matrix addition is. However, in this section, we will start to use the actual emergent power of this added code. Note that we won't have to modify the SimpleSummation code we have written above for this!

We start out by turning the SimpleSummation step into a class that is actually known by the framework. One way of doing this is by simply adding a declaration for the step in the main method of our program:

#include <cedar/processing/ElementDeclaration.h>
#include <cedar/processing/DeclarationRegistry.h>
// other includes you might need
int main(int argc, char**) // we still don't use the arguments
{
// Create the class's declaration
cedar::proc::ElementDeclarationPtr sum_declaration
(
(
"The Category you Would Like the Step to Have, Used Mainly by the UI"
)
);
sum_declaration->declare();

We assume that the SimpleSummation class lives in some namespace yourNamespace. Using the cedar::proc::ElementDeclaration shown above, the framework will be able to create new objects of the class SimpleSummation based on its class id, which is autogenerated to be yourNamespace.SimpleSummation. This is useful later, e.g., when reading an architecture from a file, but for now we can also use it to replace the lines

cedar::proc::GroupPtr group(new cedar::proc::Group());
boost::shared_ptr<SimpleSummation> sum(new SimpleSummation());
// This adds the sum step to the group under the name "sum".
group->add(sum, "sum");
// Gauss inputs
cedar::proc::sources::GaussInputPtr gauss1(new cedar::proc::sources::GaussInput());
group->add(gauss1, "gauss1");
cedar::proc::sources::GaussInputPtr gauss2(new cedar::proc::sources::GaussInput());
group->add(gauss2, "gauss2");

from the example in Creating an Architecture by

cedar::proc::GroupPtr group(new cedar::proc::Group());
group->create("yourNamespace.SimpleSummation", "sum");
group->create("cedar.processing.sources.GaussInput", "gauss1");
group->create("cedar.processing.sources.GaussInput", "gauss2");

Note that we don't need to declare the Gauss input here, as it is automatically declared as a standard within the framework.

The connect calls used for wiring things up stay the same and complete our main method. Here, source and target are given by strings with the following syntax: [step name].[slot name]

group->connectSlots("gauss1.Gauss input", "sum.operand1");
group->connectSlots("gauss2.Gauss input", "sum.operand2");
return 0;
}

"But dear tutorial-writer-person, when all this is done with strings, can't I just write a text file or something to do most of this stuff" you ask? Why yes, or something indeed! Read on in Beginner's Tutorial: Architecture Files.

Beginner's Tutorial: Architecture Files

Architecture files are a specific file format used by the processing framework to describe the structure of a processing architecture, such as the two Gauss inputs and the summation step as well as their connections described in the previous tutorials.

In order to wire up a group with these connections, we first write the architecture file. Architecture files are written in json format, and – in our case – look like this:

{
"meta":
{
"format": "1"
},
"steps":
{
"yourNamespace.SimpleSummation":
{
"name": "sum"
},
"cedar.processing.sources.GaussInput":
{
"name": "gauss1"
},
"cedar.processing.sources.GaussInput":
{
"name": "gauss2"
}
},
"connections":
[
{
"source": "gauss1.Gauss input",
"target": "sum.operand1"
},
{
"source": "gauss2.Gauss input",
"target": "sum.operand2"
}
]
}

Hopefully, most of this file is self-explanatory. The format entry in the meta node specifies what format version for architecture files we are using; it can be ommitted, however, it is recommended that it is specified so that newer versions of the framework may still read (or at least convert) these files properly. The steps node contains subnodes describing what kind of processing steps we have in our architecture, and for each step, what its parameters are (in the example, name is the only parameter). The connections node is a list of connections, where each connection specifies the source, i.e., an output of a step, and a target, i.e., an input of a different step.

Onwards, now, to the loading of this architecture. We have to declare our class again and create a group like we did before:

int main(int, char**)
{
// Create the class's declaration
cedar::proc::ElementDeclarationPtr sum_declaration
(
(
"The Category you Would Like the Step to Have, Used Mainly by the UI"
)
);
sum_declaration->declare();
cedar::proc::GroupPtr group(new cedar::proc::Group());

Now, instead of declaring our group in the code, we can just read the file:

group->readJson("path/to/the/file");
return 0;
}

And that's it!

"But dear tutorial-writer-person, do I really have to write these configuration files by hand? I'm much more of a click-and-play person!" you say? Why yes, click-and-play indeed! Read on how to make the summation step available to the UI in Beginner's Tutorial: Plug In and Play, and on how to use the UI in ProcessingTutorialUsingTheProcessingIde.

Remarks
In future versions, we plan to provide a ready-made console application for this purpose so you won't even have to write this code.

Beginner's Tutorial: Plug In and Play

As a prepraration for using the SimpleSummation step in cedar, we first have to group our declarations into a plugin. These plugins can then be loaded from cedar and used for creating architecture files in a comfortable way.

The first step towards this is to move the SimpleSummation step into a separate project that is compiled as a library (i.e., .so, .dylib or .dll, depending on your operating system). Let us assume that our library compiles to libSimpleSummation.so and, so far, contains the code from the previous tutorials in SimpleSummation.h and SimpleSummation.cpp. In order to turn this library into a plugin, we add two more files: plugin.h and plugin.cpp. The header file must always contain at least this:

#ifndef SIMPLE_SUMMATION_PLUGIN_H
#define SIMPLE_SUMMATION_PLUGIN_H
#include <cedar/auxiliaries/PluginDeclarationList.h>
CEDAR_DECLARE_PROC_PLUGIN_FUNCTION(void pluginDeclaration(cedar::aux::PluginDeclarationListPtr plugin));
#endif // SIMPLE_SUMMATION_PLUGIN_H

Upon loading the plugin, the processing framework calls the function declared here and imports everything declared in the cedar::proc::PluginDeclaration. Therefore, we declare our summation step in this function:

#include "plugin.h"
#include "SimpleSummation.h"
#include <cedar/processing/ElementDeclaration.h>
void pluginDeclaration(cedar::aux::PluginDeclarationListPtr plugin)
{
cedar::proc::ElementDeclarationPtr summation_decl
(
<
>
(
"Utilities"
)
);
plugin->add(summation_decl);
}

The declaration code should look familiar from Beginner's Tutorial: Architecture Files. After recompiling, now, the plugin is ready for use!

Beginner's Tutorial: Using cedar's GUI

In the folder cedar/bin, you can find an application called cedar. If you run it, you can generate the configuration files described in Beginner's Tutorial: Architecture Files using a visual representation. After starting the program, yous should see something like this:


Different Parts of the User Interface

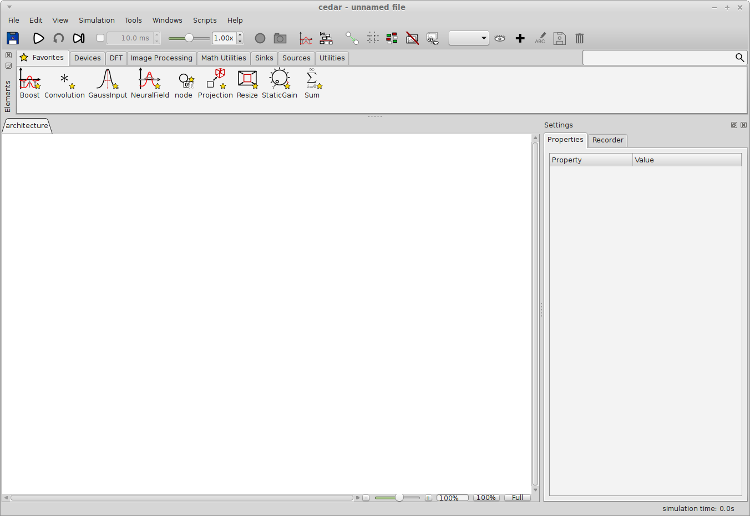

The main user interface of cedar consists of a few important elements, highlighted red in the following picture. Note, that the elements can be reordered freely, so your interface might look slightly different.


The elements are:

  • Elements A list of all the steps and other elements that can currently be used for building architectures.
  • Architecture This is where you construct your architecture. Items from the Elements pane can be dragged and dropped in here. Once they are in, you can right-click them to get various context-dependent actions. For example, you can display data of a processing step.
  • Properties When an element is selected in the architecture pane, its parameters are displayed here.

Integrating the Summation Step

Now it is time to include the summation plugin we created in Beginner's Tutorial: Plug In and Play. First, click on "Plugins" in the main menu, then click on "Load plugin ...". In the dialog that opens up, click "browse", navigate to the library of our plugin and "open" it. The box in the middle of the plugin dialog should now display the names of all the steps that the plugin declares. In our case, this should be "yourNamespace.SimpleSummation". Once you click "ok", the plugins are loaded into the framework. Now, in the "Elements" tab, you should be able to find our plugin in the category "Utilities". If you want to create the architecture from previous sections, simply drag our summation step and two Gauss inputs into the white drawing field. Then connect the Gauss inputs to the summation step by dragging a line from the data slot (little circle) of the Gauss inputs to the input of the summation steps (also little circles).

Beginner's Tutorial: Dynamics

Steps that run in a loop have a special place in the processing framework. Instead of being triggered by normal cedar::proc::Triggers, e.g., when a new image is loaded, looped steps are triggered by cedar::proc::LoopedTriggers. This means that the compute function of such a step receives cedar::proc::StepTime as argument.

Because one of the main purposes of cedar is to simulate dynamical system, there is a special class cedar::dyn::Dynamics. Whenever simulating a dynamical system, it is recommended that you inherit this class. Instead of implementing the compute function as for other cedar::proc::Steps, classes derived from cedar::dyn::Dynamics must implement the cedar::dyn::Dynamics::eulerStep method.

Intermediate Tutorial: Data Validation

In the compute function of the SimpleSummaton step introduced in A New Class, we assumed that the data we receive is always of the type cedar::aux::MatData. However, when we expose our step to users who might not be aware of this assumption, they might connect a different kind of data, likely resulting in a crash. However, the processing framework offers functionality that allows us to automatically check the data before the compute function is executed. This is done by overriding the method cedar::proc::Connectable::determineInputValidity in our step:

cedar::proc::DataSlot::VALIDITY SimpleSummation::determineInputValidity
(
cedar::proc::ConstDataSlotPtr,
cedar::aux::ConstDataPtr data
) const
{
if (boost::dynamic_pointer_cast<cedar::aux::ConstMatData>(data))
{
}
else
{
}
}

Note, that the slot parameter is not used here because the same conditions must be met for all of our slots. This is just a simple check, and a real-world summation step should probably also check that the matrix has a compatible size in this function, however, the principle still remains the same.

Remarks
The data pointer in this function can be a null-pointer when the connection is deleted. Always perform checks for this circumstance!

Intermediate Tutorial: Data Validation II (The Automationing)

We have recently introduced a new system that simplifies the type checking mechanisms and allows you to reuse type checking mechanisms. Every input slot can now have a type check associated with it that overrides the call to the determineInputValidity function. This check can, in principle, be any functor, i.e., any object that overloads operator(). The processing framework already has a few of these in the cedar::proc::typecheck namespace.

Here's an example: say we write a step that can only deal with data that can be cast into cedar::aux::MatData (as in the example in Intermediate Tutorial: Data Validation). With automatic type checking, we can express this in the constructor as follows:

// ...
#include <cedar/processing/typecheck/DerivedFrom.h>
// ...
:
// ...
{
// ...
// store a pointer to the slot
cedar::proc::DataSlotPtr operand1 = this->declareInput("operand1");
// tell the slot what to expect
// ...
}

With this code in place, we no longer need to write long functions that do these checks! If the checks provided by cedar don't provide what you need, you have two options: either you use the old way of implementing the check in determineInputValidity, or you write your own type check class by deriving from cedar::proc::typecheck::TypeCheck.

Intermediate Tutorial: Input Collections

"Dear tutorial-writer-person, way back in A New Class we wrote a summation class that only has two inputs. Doesn't this get annoying if one wants to sum up a lot of matrices?" Why yes, it does. Therefore, we have a special solution for this sort of problem: input collections. Instead of having an input that can only be associated with a single data object, these collections can receive an indetermined number of data. Defining an input as a collection can be done by declaring it in a step's constructor like this:

this->declareInputCollection("operands");

Note that input collections are never mandatory. In the compute function, we can now sum all of the inputs like this:

void SimpleSummation::compute(const cedar::proc::Arguments&)
{
cedar::proc::ExternalDataPtr input_slot = this->getInputSlot("operands");
if (input_slot->getDataCount() <= 0)
{
return;
}
cv::Mat& sum = mOutput->getData();
sum = input_slot->getData(0)->getData<cv::Mat>().clone();
for (size_t i = 1; i < input_slot->getDataCount(); ++i)
{
cedar::aux::DataPtr data = input_slot->getData(i);
if (data)
{
sum += data->getData<cv::Mat>();
}
}
}

Advanced Tutorial: Writing your own Parameter Type

Todo:
This tutorial must be improved a lot!

When the standard parameter types that cedar provides just don't suffice for expressing settings of your class, you have the option of implementing your own parameter type.

This involves writing (at least) two classes: the actual (data) representation of the parameter and a widget for manipulating this data.

First, let us take a look at the data class. This class must inherit cedar::aux::Parameter class. For details on the concepts of parameters and the configurable interface, see Storing and loading configurations for parameters.

The widget class must implement cedar::proc::gui::Parameter. This class already takes care of storing a pointer to the parameter to be displayed. What must be implemented by you is a method that reacts when the parameter pointer stored in the superclass is changed. This means, that this function must adapt all previous widgets it created (if any), or allocate new widgets for the newly set parameter.

Finally, the new parameter widget must be associated with the parameter type.

Todo:
There is currently no proper way to associate a parameter with the widget outside of cedar.

Advanced Tutorial: Locking your data manually

By default, processing steps are automatically thread-safe, i.e., data and parameters are locked for reading and writing during any function calls by the processing framework. However, this may have a downside. Consider a processing step that has a very long-running compute method. Before calling it, the framework locks all inputs for reading and outputs for writing. Now, during the entire time the compute function is running, preceeding processing steps cannot lock their outputs for writing, because the long-running step holds a read lock on them.

To counter this, we have introduced a method for disabling the automatic locking of inputs and outputs. In the above example, if the long-running step only accesses its inputs and outputs briefly, it can disable the automatic locking and only lock its data when it is actually accessed.

To do so, a step has to call the following method in the constructor:

your::Step::Step()
{
// ...
this->setAutoLockInputsAndOutputs(false);
// ...
}

Note, that this only disables automatic locking of inputs and outputs. Parameters and buffers are still locked automatically (buffers are never passed to other steps, thus they cannot delay them.)

Now, whenver you are accessing input or output data, you must lock it manually, e.g., by writing:

cedar::aux::ConstMatDataPtr input = ...
cedar::aux::MatDataPtr output = ...
// ...
input->lockForRead();
// process input
input->unlock();
// do long computation
output->lockForWrite();
// write result to output
output->unlock();

Advanced Tutorial: Connectable Icon Views

You may have noticed that some of the steps in cedar change their icon depending on their parameters. If you want to do this for you step, you can implement your own cedar::proc::gui::ConnectableIconView (which is a QGraphicsItem; if you're unfamiliar with that class, please refer to the Qt documentation).

If you just want to use an icon from a file that changes depending on some events in your step, you can inherit cedar::proc::gui::DefaultConnectableIconView to implement this. In this case, your icon view will usually require two methods. One that creates the connections between the events (qt signals), and a slot that handles them.

The code for connecting slots should be implemented in the connectableChanged function (which is called by the super class). Here's an example:

void your::IconView::connectableChanged()
{
auto parameter = this->getConnectable()->getParameter("some parameter");
QObject::connect(parameter.get(), SIGNAL(valueChanged()), this, SLOT(updateIcon()));
this->updateIcon();
}

The updateIcon function can look like this:

void your::IconView::connectableChanged()
{
auto parameter = boost::dynamic_pointer_cast<cedar::aux::ConstBoolParameter>(this->getConnectable()->getParameter("active"));
if (parameter->getValue())
{
this->setIconPath(":/some/icon.svg");
}
else
{
this->setIconPath(":/some/other_icon.svg");
}
}

(this code is taken from cedar::proc::gui::BoostView).

To make the processing framework use your icon view, you need to modify the declaration of the element that the icon view is associated with.

// ...
cedar::proc::ElementDeclarationPtr declaration
(
// the second template argument below specifies that the custom icon view is to be used
(
"Category"
)
);
// ...

If you want to use a more sophisticated icon view, you can use cedar::proc::gui::DefaultConnectableIconView as an example. Mainly, you need to inherit cedar::proc::gui::ConnectableIconView and overwrite a few methods:

class your::IconView : public cedar::proc::gui::ConnectableIconView
{
public:
IconView()
{
}
//--------------------------------------------------------------------------------------------------------------------
// public methods
//--------------------------------------------------------------------------------------------------------------------
public:
QRectF boundingRect() const
{
// here, you need to return the bounding rect of your drawing
}
void setBounds(const qreal& x, const qreal& y, const qreal& size)
{
// this tells you how large your icon may be
}
void paint(QPainter* painter, const QStyleOptionGraphicsItem* option, QWidget* widget = nullptr)
{
// paint your icon here using standard QPainter methods
}
protected:
{
// see above
}
}; // class cedar::proc::gui::DefaultConnectableIconView

Summary

"But dear tutorial-writer-person, is this really everything?" you ask? No, it is not. By nature, a tutorial can only introduce so many features. If you have read all of the advanced tutorials, you should know a great deal about the processing framework, but there is probably still more to learn, e.g., by reading the documentation on the classes in cedar::proc and getting to grips with all the details in An introduction to cedar's processing framework. In addition, we still have a giant pile of features that we want to implement (and that we wish we already had), so keep your eyes open for new releases!

ml>
